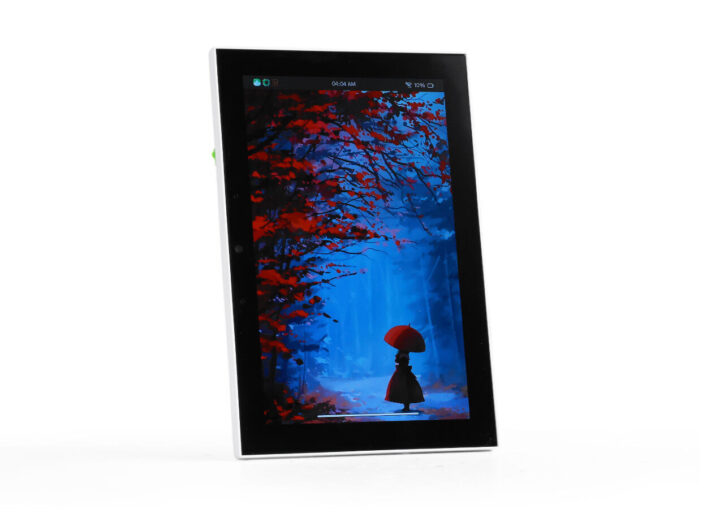

Seeed Studio’s reTerminal D1001 features an 8-inch capacitive touch screen, driven by an ESP32-P4 RISC-V microcontroller, and includes an ESP32-C6 wireless module, a camera, a dual-microphone array, and a speaker.
The reTerminal D1001 is crafted as a complete solution for HMI uses like control panels, IoT terminals with vision, video intercoms, and smart dashboards. A standout feature is its optional 4G LTE cellular connectivity via an mPCIe module and SIM card slot and LoRaWAN capability through a Stamp module.
Specifications of the reTerminal D1001 include:
– SoC: Espressif ESP32-P4NRW32
– CPU: Dual-core 32-bit RISC-V HP CPU up to 400 MHz, Single-RISC-V LP MCU core up to 40 MHz
– Memory: 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM, 32MB PSRAM
– Storage: 128 KB HP ROM, 16 KB LP ROM, 32MB QSPI NOR Flash, MicroSD card slot
– GPU: 2D Pixel Processing Accelerator (PPA)
– VPU: H.264 and JPEG codecs
– Display: 8-inch MIPI DSI capacitive touch, 1280 x 800 resolution, 250 cd/㎡ brightness, Driver IC – 9365DA-H3, Touch IC – GSL3670
– Camera: 2MP SC2356, 1608×1208 resolution, up to 30FPS @ 1600×1200 10-bit
– Audio: Dual microphone, 2W @ 8Ω NS4150B speaker, ES8311 codec, ES7210 chip
– Wireless: ESP32-C6 with 2.4 GHz WiFi 6, Bluetooth 5.x LE, 802.15.4 radio for Zigbee, Thread, and Matter, optional 4G LTE and LoRaWAN connectivity
– USB: Type-C port for power and debugging
– Sensor: 6-axis LSM6DS3TR motion sensor
– Misc: Reset, Boot buttons, Power switch, Power LED, Status RGB LED, PCF8563T RTC
– Power: 5V via USB-C, 2,500 mAh battery
– Dimensions: TBD
The product is primarily a development kit, akin to the 8-inch Waveshare ESP32-P4-WIFI6-Touch-LCD and an expanded version of M5Stack Tab5. Uniquely, it can add 4G LTE and LoRaWAN connections. Sold for $84.90 on Seeed Studio, it may later be available on AliExpress and Amazon.
