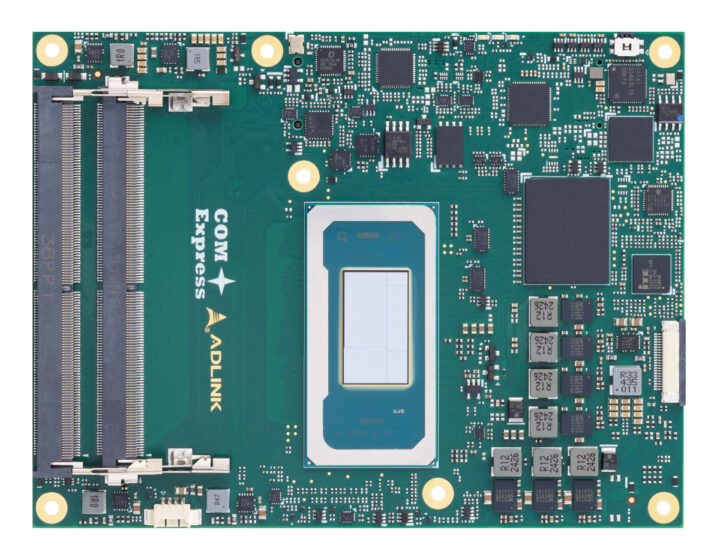

ADLINK Express-PTL COM Express Type 6 computer-on-module is powered by Intel Core Ultra Series 3 “Panther Lake-H” SoCs, featuring up to a 16-core Core Ultra 7 368H processor capable of 180 TOPS in AI performance. The module includes up to 128 GB DDR5 memory with IBECC support and offers high-speed I/O options like PCIe Gen4, multi-display capabilities, USB4/Thunderbolt, and industrial features such as TSN Ethernet, TPM 2.0, and advanced power management. This industrial module supports a temperature range of -40°C to 85°C and is suitable for applications in robotics, industrial automation, medical imaging, transportation, and smart infrastructure.
ADLINK Express-PTL specifications include:
– SoC: Intel Core Ultra Series 3 “Panther Lake-H” processors
– Intel Core Ultra 5 336H: 12-core, 1.9/4.6 GHz, 18MB cache, 4-core Xe3 graphics (37 TOPS), 47 TOPS NPU; TDP: 25W
– Intel Core Ultra 7 356H: 16-core, 1.9/4.7 GHz, 18MB cache, 4-core Xe3 graphics (40 TOPS), 50 TOPS NPU; TDP: 25W
– Intel Core Ultra 7 368H: 16-core, 2.0/5.0 GHz, 18MB cache, 12-core Xe3 graphics (122 TOPS), 50 TOPS NPU; TDP: 25W
– System Memory: Up to 128GB DDR5 SO-DIMM with IBECC
– Storage: Onboard NVMe SSD option
– Networking: Intel I226-IT with optional TSN support
– Host Connectors: 2x 220-pin high-density connectors for storage, display, and USB interfaces
– Expansion: PCIe x8 Gen4, PCIe x1 Gen4, GPIO, LPC bus, and more
– Audio, USB interfaces, Serial ports, Debug headers, and Security features like TPM 2.0
– Dimensions: 125 x 95 mm
– Temperature Range: Standard and Extreme Rugged options
– Humidity, Shock, and Vibration standards compliance
– Support for Windows 11 IoT Enterprise LTSC 2024, Ubuntu 24.04, and Yocto Linux on a project basis
– Compatibility with Express-BASE6 R3.1 carrier board
The Express-PTL is in its preliminary phase, and no pricing or availability details are provided yet. More information is available on the product page.
