Advantech MIO-5356: Industrial 3.5-Inch SBC with Intel Core Series 3 “Wildcat Lake” SoC

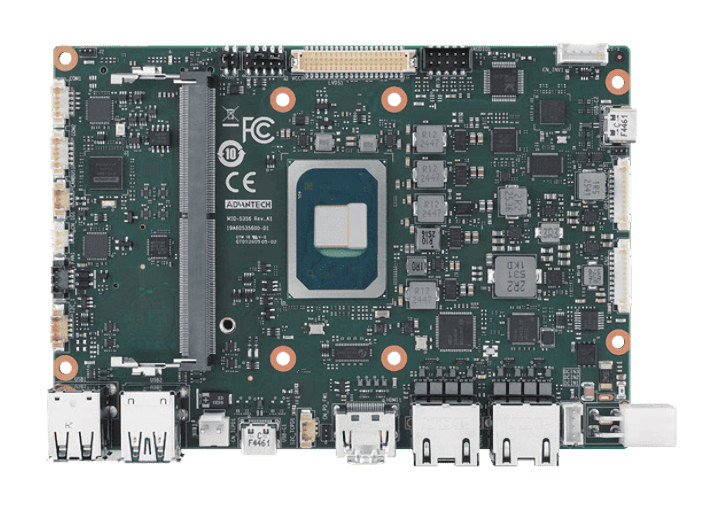

The Advantech MIO-5356 is the first hardware platform we’ve encountered based on Intel’s upcoming Core Series 3 (Core 300) “Wildcat Lake” SoC. This 3.5-inch single-board computer (SBC) is intended for industrial use and can be powered by the Intel Core 7 350 hexa-core processor.

This fanless board supports up to 64GB DDR5 memory, NVMe SSD storage, and can handle up to three displays independently through USB-C, HDMI, and LVDS interfaces. It features 2.5GbE and GbE networking with TSN and OOB management, as well as WiFi, Bluetooth, and cellular connectivity via M.2 sockets. Additional features include audio connectors, six USB ports, RS232/RS485 interfaces, CAN Bus interfaces, and more.

Advantech MIO-5356 specifications:

• Wildcat Lake SoC options:
  • Intel Core 3 305 hexa-core CPU with 2x P cores @ 1.5 GHz / 4.4 GHz (Turbo) and 4x LPE cores, 16x EU Intel graphics @ 2.3 GHz; TDP: 15W
  • Intel Core 5 320 hexa-core CPU with 2x P cores @ 1.5 GHz / 4.6 GHz (Turbo) and 4x LPE cores, 32x EU Intel graphics @ 2.5 GHz; TDP: 15W
  • Intel Core 7 350 hexa-core CPU with 2x P cores @ 1.5 GHz / 4.6 GHz (Turbo) and 4x LPE cores, 32x EU Intel graphics @ 2.6 GHz; TDP: 15W
• System Memory: Up to 64GB DDR5-6400 (note: dual-channel support mentioned in the datasheet, but likely an error)
• Storage: NVMe SSD via 2x M.2 M-Key 2280 sockets (note: it’s unclear whether one or two sockets are present on the board)
• Video Output Options:
  • 1x DP 1.4a, 1x DP2.1 via USB-C ports
  • HDMI 2.1
  • LVDS + 12V/5V inverter
  • Supports 3x simultaneous displays: HDMI + USB Type-C + LVDS
• Audio:
  • Realtek ALC888S audio codec
  • Line-in, Line-out, MIC connectors
• Networking:
  • 2.5 Gbps Ethernet RJ45 via Intel i226 2.5GbE controller with TSN support; PoE supports with optional MIOe-TCDP module
  • Gigabit Ethernet RJ45 via Intel i210 GbE controller; EdgeBMC Out-of-Band(OOB) remote control support
  • Optional WiFi and Bluetooth via M.2 E-Key module
  • Optional 4G LTE/5G via M.2 B-Key module and Nano SIM slot
• USB Options:
  • 1x USB4 Type-C port with DisplayPort 2.1 Alt. mode; note: marked as internal
