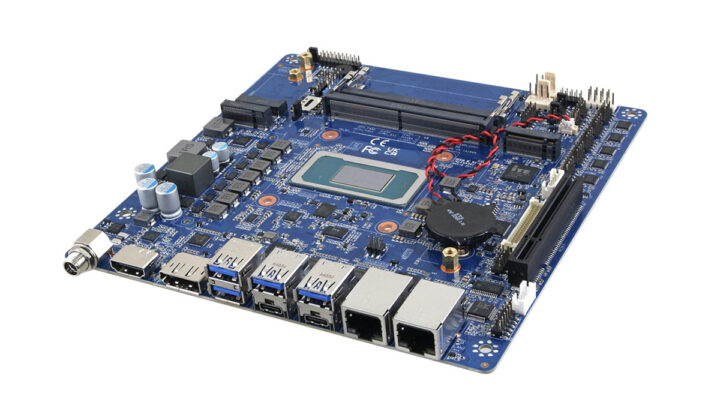

Avalue has unveiled the EMX-PTLP, a thin mini-ITX industrial motherboard utilizing Intel’s Panther Lake-H Core Ultra (Series 3) processors, including the Intel Core Ultra 7 358H SoC with up to 12 cores, 180 TOPS for AI, and industrial automation.
The board accommodates up to 64GB DDR5 SoDIMM/CSoDIMM memory, M.2 PCIe 5.0 and 4.0 slots for storage, M.2 E-Key and B-Key slots for wireless and cellular connectivity, a PCIe x8 slot, HDMI, DisplayPort, USB-C, and LVDS/eDP for display, alongside Gigabit and 2.5GbE ports, USB4, USB 3.2, USB 2.0 ports, and more.
Avalue EMX-PTLP specifications:
- SoC – Intel Panther Lake processor with Intel Xe LPG graphics
- Intel Core Ultra 5 322 6-core CPU up to 4.4 GHz, 12MB Smart Cache, 2x Xe cores, 18 TOPS, 46 TOPS AI accelerator; PBP: 25 Watts
- Intel Core Ultra 5 325 8-core CPU up to 4.5 GHz, 12MB Smart Cache, 4x Xe cores, 40 TOPS, 47 TOPS AI accelerator; PBP: 25 Watts
- Intel Core Ultra 7 355 8-core CPU up to 4.7 GHz, 12MB Smart Cache, 4x Xe cores, 40 TOPS, 49 TOPS AI accelerator; PBP: 25 Watts
- Intel Core Ultra 7 356H 12-core CPU up to 4.7 GHz, 18MB Smart Cache, 10-core Intel Arc B370 GPU, 98 TOPS, 47 TOPS AI accelerator; PBP: 25 Watts
- Intel Core Ultra 7 358H 16-core CPU up to 4.8 GHz, 18MB Smart Cache, 12-core Intel Arc B390 GPU, 122 TOPS, 50 TOPS AI accelerator, 180 TOPS total; PBP: 25 Watts
- System Memory – Up to 64GB via 2x 262-pin DDR5 SoDIMM/CSoDIMM socket (6400MHz or 7200MHz)
- Storage – Up to 2x M.2 NVMe SSD (PCIe 5.0/4.0); RAID 0/1 supported
- Display Interfaces
- 1x HDMI 2.1 up to 7680 x 4320 @ 30Hz
- 1x DP1.4a up to 7680 x 4320 @ 30Hz
- 2x USB Type-C (DisplayPort) supporting 3840 x 2160 @ 60Hz
- LVDS & eDP1.2 interfaces up to 4096 x 2304 @ 60Hz
- Audio
- Realtek ALC888S HD audio codec
- MIC-in, Line-out, Line
