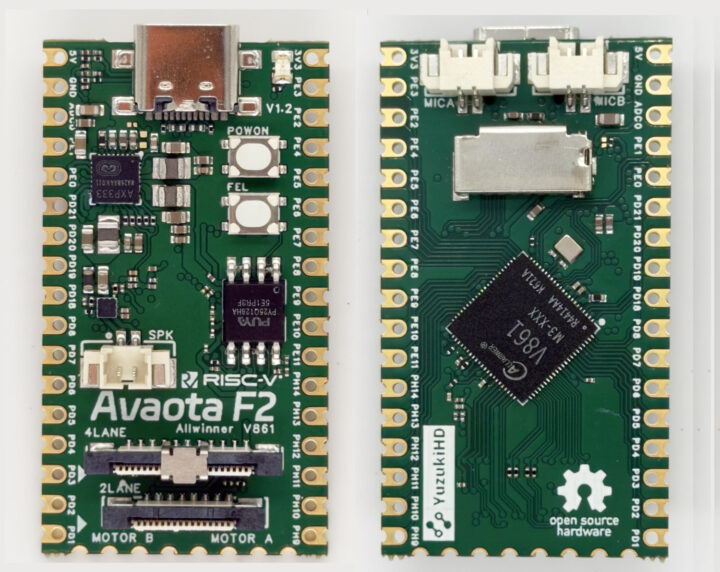

The Avaota F2 SBC is the first to be built around the Allwinner V861 dual-core 64-bit RISC-V SoC, which features 128MB of on-chip DDR3 memory, 4K camera support, an H.265 video codec, and a 1 TOPS AI accelerator.
This new model updates the earlier Avaota F1 camera board featuring an Allwinner V821 SoC. The F2 SBC, an open-source hardware product, boasts enhanced capabilities such as Full HD and 4K camera sensor compatibility, motor control for PTZ (Pan-Tilt-Zoom) features, and expanded audio support through one speaker and two microphone connectors. Notably, the Avaota F2 lacks the WiFi present in the F1 version.
The Avaota F2 specifications include:
- SoC: Allwinner V861M2-XXX
- CPU
- Dual-Core XuanTie C907 RISC-V (RV64GCBV/RV32GGCBV) clocking up to 1.4GHz with RVV 1.0 extensions
- Single-core XuanTie E907 RISC-V (RV32IMAFC) clocking up to 800MHz
- VPU
- Video Encoder
- H.264/H.265 up to 4K @ 25fps
- (M)JPEG up to 8192×8192
- Video Decoder – (M)JPEG up to 1080p60
- Video Encoder
- AI Accelerator – 1 TOPS (INT8) NPU “AI-ISP 2.0”
- Memory – 128MB DDR3
- CPU
- Storage
- 16MB NOR flash (PY25Q128)
- MicroSD card slot
- Display – SPI screen support via headers, including 3.5-inch 320×480 and 1.54-inch 240×240 displays
- Camera
- 4-lane MIPI CSI connector
- 2-lane MIPI CSI connector
- Compatible with GC2083 (1920×1080 @ 30fps) and GC8613 (3840×2160 @ 15fps)
- Audio
- Speaker connector
- Two microphone connectors
- USB – USB Type-C port for power, data, and serial output
- Expansion
- 2
- 2
