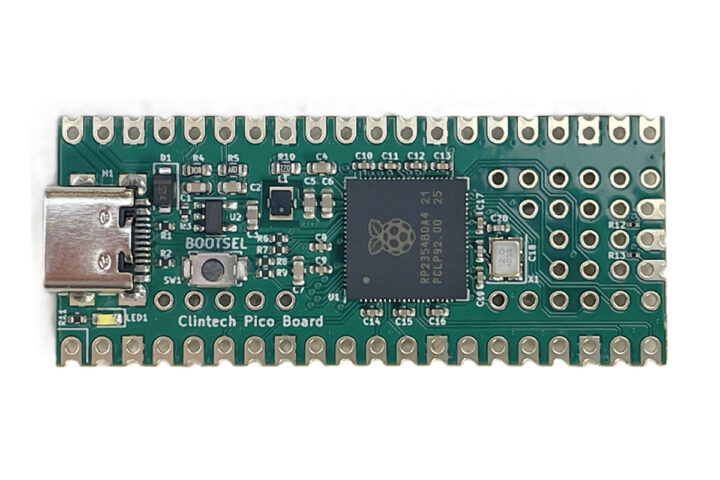

Developed by Clintech Ltd. in Bulgaria, the Clintech Pico Board is reportedly the first development board featuring the Raspberry Pi RP2354B chip with 2MB on-chip memory. It maintains the form factor of a Raspberry Pi Pico 2 while incorporating additional GPIOs to utilize the 48 general-purpose GPIOs offered by the RP2354B chip.
This board, similar to the Raspberry Pi Pico 2, incorporates 40 castellated and through holes on the sides, revealing GPIOs 0–22 and 26–28, along with three debug pins. It also includes 27 extra onboard through holes that access the remaining GPIOs (23–25 and 29–47) and the QSPI interface (SD0–SD3 and SCLK) for external memory.
Clintech Pico specifications:
SoC – Raspberry Pi RP2354B
– CPU
– Dual-core Arm Cortex-M33 @ 150 MHz with Arm Trustzone, Secure boot
– Dual-core 32-bit RISC-V Hazard3 @ 150 MHz (3-stage in-order pipeline; RV32IMAC with Zba, Zbb, Zbs, Zbkb, Zcb, Zcmp, and Zicsr extensions)
– Up to two cores can be used simultaneously: 2x Arm, 2x RISC-V, or 1x Arm + 1x RISC-V
– Memory – 520 KB on-chip SRAM
– Storage – 2MB of stacked (in-package) flash memory
Other features include:
– Storage – Up to 16 MB of external QSPI flash or PSRAM via four through holes on the bottom
– USB – USB Type-C port for power and data
– Expansion
– 2x 20-pin headers with GPIO, UART, SPI, I2C, PWM, and ADC
– 27x additional onboard through-holes for all GPIOs and QSPI
– I/Os include 3x PIO blocks, 12x PIO state machines
– Debugging – 3-pin SWD debug interface
– Misc – Boot Select button, onboard LED (GPIO25)
– Power
– 5V input via USB-C (VBUS) or VSYS rail
– Onboard 3.3V LDO regulator (up to 500 mA)
– Dimensions – 51 x 21 mm (4-layer ENIG PCB, compatible with Raspberry Pi Pico / Pico 2 modules)
– Temperature
– Operating – TBD
– Storage – 15°C and 25°C (as per the board’s datasheet)
– Humidity – 30% to 60%
– Compliance – RoHS (Directive 2011/65/EU) and EMC (Directive 2014/30/EU) compliant
It equips a standard bootloader for UF2 drag-and-drop firmware flashing over USB mass storage mode. It supports the Raspberry Pi Pico C/C++ and MicroPython SDKs.
In our previous articles, we explored various Raspberry Pi Pico compatible boards like Nexus RP2350 LiPo, Waveshare RP2350 CAN, CPico RP2350, and Pico W5, which offered features such as battery support, CAN Bus controller, USB-C port, enhanced flash, PSRAM, and wireless connectivity. The Clintech Pico stands out as the first to employ the new Raspberry Pi RP2354B microcontroller, offering 48 GPIOs.
The Clintech Pico is priced at $20 on Tindie, with global shipping available from Bulgaria. More details can be found on Clintech’s website.
