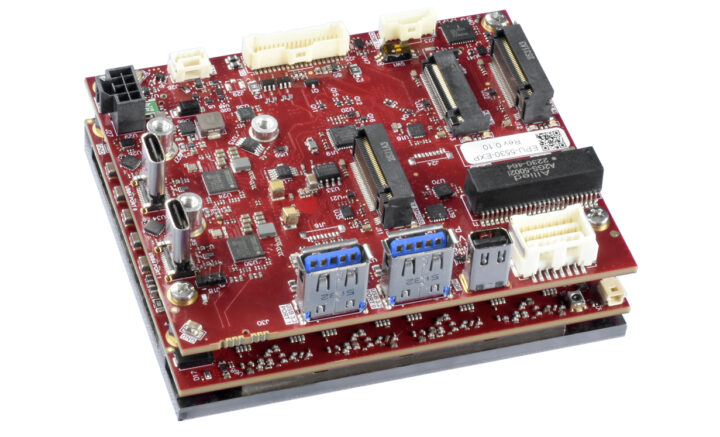

The VersaLogic Raptor (VL-EPU-5530) is an Embedded Processing Unit powered by a 13th Gen Intel Core i5-1345URE or Processor U300E SoC, built for high-performance computing in extreme environments ranging from -40 to +85°C and meeting MIL-STD-202H standards for shock and vibration.
This COM HPC Mini-sized (95 x 80 x 36 mm) board can support up to 64 GB of soldered-down LPDDR5 memory, providing vertical USB4, USB 3.0 Type-A, and mini DisplayPort connectors, two 2.5 Gbps Ethernet ports with TSN capabilities, and three M.2 expansion sockets for NVMe SSDs, AI accelerators, or other modules.
Specifications:
- Raptor Lake SoC options:
- Intel Processor U300E with 5-core/6-thread, 1x P-core at 1.1 GHz / 4.3 GHz (Turbo) and 4x E-cores up to 3.2 GHz (Turbo), 8MB Cache, 48EU Intel UHD Graphics up to 1.1 GHz, PBP: 15W
- Intel Core i5-1345URE with 10-core/12-thread, 2x P-cores at 1.4 GHz / 4.6 GHz (Turbo) and 8x E-cores up to 3.4 GHz (Turbo), 12MB cache, 80 EU Intel Iris Xe graphics at 1.25 GHz, PBP: 15W
- System Memory – Up to 64GB LPDDR5x
- Storage – Supports up to three M.2 NVMe SSDs
- Display Interfaces:
- 1x Mini DP++ with HDMI signaling support
- 1x USB4 DP Type-C port
- Networking – 2x 2.5GbE ports with TSN support
- USB:
- 2x USB4 Type-C ports
- 2x USB 3.2 Type-A ports
- Up to 8x USB 2.0 interfaces
- Serial:
- 2x RS-232/422/485 COM ports
- Optional CAN Bus via M.2 M key expansion card
- Expansion:
- 3x M-Key sockets (2x 2242, 1x 2280)
- 8x GPIO, 1x I2C
- Analog I/O – ADC via M.2 M key expansion card
- Power Supply – 10V to 15V DC
- Dimensions – 95 x 80 x 36 mm (COM-HPC Mini form factor)
- Weight – 265 grams
- Temperature Range – -40°C to +85°C
- Shock and Vibration – Compliant with MIL-STD-202H
- Operational altitude – Up to 15,240 meters (50,000 feet)
The Raptor board supports Ubuntu 64-bit (latest version) and Windows 10/11 64-bit, and is accompanied by the VersaAPI Library for device management through Visual Studio and C/C++ on Windows and Linux.
Its compact size suits it for drones and other uncrewed systems (UxVs), and it supports various accessories including single and dual GbE M.2 cards, a 2x UART + GPIO M.2 module, NVMe SSDs, and display adapters. It offers a smaller alternative to the DFI RPP051 Pico-ITX SBC, equipped with similar 13th Gen Intel Core SoCs.
Development samples of the VersaLogic Raptor will be available by July 2026, ensuring a 10+ year production lifecycle. Pricing details are yet to be announced. More information is available on the product page and press release.
