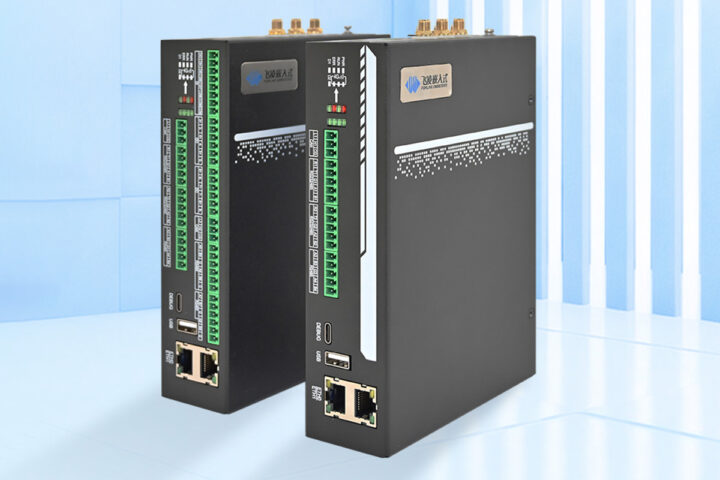

Forlinx Technology has launched the FCU1501, a robust, fanless industrial embedded computer and IoT gateway featuring the Rockchip RK3506J processor with a tri-core Cortex-A7 and a single Cortex-M0 core. This system is engineered for reliable data acquisition and protocol conversion in challenging environments.
The gateway is available in two versions (basic and extended), both similar in size but differing in interface density. Each includes up to 512MB DDR3 RAM, 8GB eMMC flash, dual Fast Ethernet, dual-band Wi-Fi & Bluetooth 5.0, and 4G LTE Cat 1 support. It is ideal for automation, rail transit, and smart manufacturing. The system operates within a broad industrial temperature range (-40°C to +85°C) and complies with Level 3 EMC standards.
Forlinx FCU1501 Specifications:
- SoC – Rockchip RK3506J
- CPU
- 3x Arm Cortex-A7 cores up to 1.5 GHz
- Arm Cortex-M0 real-time core
- GPU – 2D GPU only
- No VPU, no NPU
- CPU
- System Memory – 256MB or 512MB DDR3
- Storage
- 256MB NAND Flash or
- 8GB eMMC flash
- Networking
- 2x 10/100Mbps Fast Ethernet RJ45 ports (auto-sensing, no PoE)
- Dual-band Wi-Fi and Bluetooth 5.0 with dual antenna interfaces
- Optional 4G LTE Cat 1 cellular connectivity via Nano SIM slot
- USB – 1x USB 2.0 Type-A port (supports OS flashing)
- Serial
- 4x RS485, 2x RS232, 1x CAN FD / CAN 2.0B (Basic Version)
- 8x RS485, 2x RS232, 2x CAN FD / CAN 2.0B (Extended Version)
- RS232 is multiplexed with RS485; all channels feature independent digital ground
- Other I/Os
- 2x DI (Dry contact), 2x DO (Relay output, Normally Open, 5A 250VAC / 5A 30VDC) (Basic Version)
- 8x DI, 8x DO (Extended Version)
- Debugging – USB Type-C debug port
- Misc
- 8x LEDs (Power, Run, Error, 3x 4G signal, 2x User-defined)
