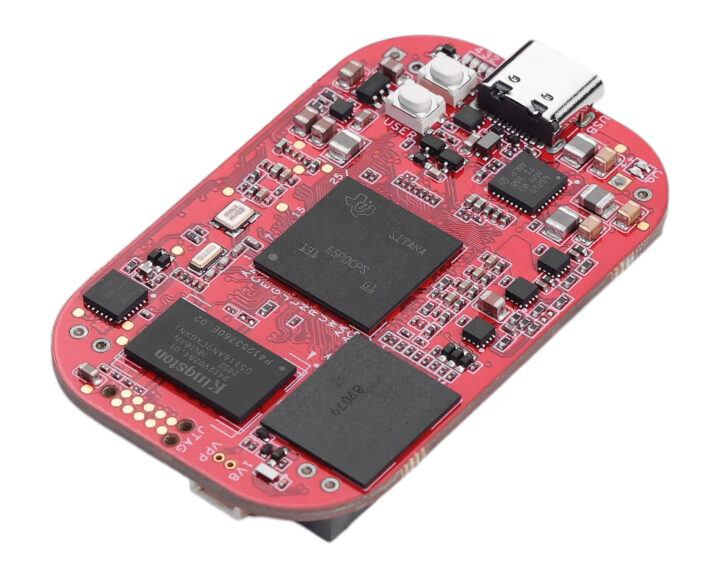

The PocketBeagle 2 Industrial updates the PocketBeagle 2 Rev A1 SBC with 1GB DDR4 RAM, 64GB eMMC flash, and support for industrial temperature ranges. The original board included only 512GB DDR4 memory, an eMMC flash footprint without actual flash, and supported commercial temperature ranges.
Besides these upgrades, other specifications remain unchanged: Texas Instruments AM6254 quad-core Cortex-A53 SoC, an MSPM0L1105 Cortex-M0+ microcontroller, a microSD card slot, a USB-C port, UART and JTAG debug support, and two 36-pin GPIO connectors. The PCB for the PocketBeagle 2 Industrial is red (similar to the BeagleBone Black Industrial 4G), while the PocketBeagle 2 features a black PCB.
PocketBeagle 2 Industrial specifications:
- Main SoC – Texas Instruments AM6254
- CPU
- Quad-core 64-bit Arm Cortex-A53 @ 1.4 GHz
- Arm Cortex-M4F real-time core @ 400 MHz with 256KB SRAM
- GPU – Imagination PowerVR Rogue AXE-1-16M with support for OpenGL 3.x/2.0/1.1, Vulkan 1.2; note: part of AM6254, but not listed in the board’s specifications, likely due to lack of video output.
- Dual-core Programmable Real-Time Unit Subsystem (PRUSS) running up to 333 MHz
- Dedicated Device/Power Manager
- Security – Secure boot and Trusted Execution Environment (TEE) supported
- CPU
