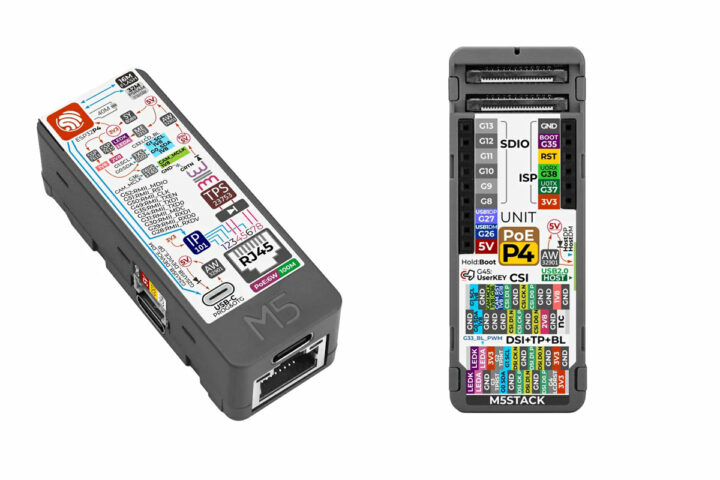

The M5Stack Unit PoE-P4 is a compact development kit powered by PoE, featuring the ESP32-P4NRW32 SoC. It comes with a 10/100Mbps Ethernet PHY, enabling IEEE 802.3at PoE for power and data transmission through a single cable and supports MIPI DSI/CSI display and camera interfaces.
This device is intended as a network-enabled node with built-in PoE (up to 6W), a USB Type-C host port, a separate USB Type-C OTG/download interface, an RGB LED, IR transmitter, user button, Grove (HY2.0-4P) port, Hat expansion header, and SDIO/ISP expansion interfaces, making it apt for industrial HMI panels, PoE smart terminals, camera/vision acquisition nodes, smart home controllers, and edge computing devices.
M5Stack Unit PoE-P4 specifications:
– SoC – Espressif Systems ESP32-P4NRW32
– CPU
– Dual-core 32-bit RISC-V HP CPU @ up to 400 MHz with AI instructions extension and single-precision FPU
– Single-RISC-V LP MCU core @ up to 40 MHz
– Memory
– 768 KB HP L2MEM (dual-core CPU), 32 KB LP SRAM, 8 KB TCM (LP MCU)
– 32MB PSRAM
– Storage – 128 KB HP ROM, 16 KB LP ROM
– GPU – 2D Pixel Processing Accelerator (PPA)
– VPU – H.264 and JPEG codecs support
– Storage – 16MB NOR Flash
– Display I/F
– MIPI DSI via 24-pin 0.5mm FPC connector (touch+backlight)
– Supports up to 1920×1080 resolution (lane/frame-rate dependent)
– Camera I/F – 2-lane MIPI CSI via 24-pin 0.5mm FPC connector
– Networking – 10/100Mbps Fast Ethernet RJ45 port with PoE via IP101GRI PHY
– USB
– 1x USB 2.0 Type-C Host port
– 1x USB 2.0 Type-C OTG port (firmware flashing/debugging)
– Expansion
– 4-pin HY2.0-4P Grove interface
– 16-pin Hat2-Bus header
– 9-pin SDIO-Bus header
– 6-pin ISP-Bus header
– Misc
– User button
– RGB LED indicator (NH-B2020RGBA-HF)
– Infrared transmitter (MHS153IRCT)
– Power
– 5V via USB Type-C port
– IEEE 802.3at PoE up to 6W via onboard DC-DC converter
– Consumption
– Normal Operation – 73.82mA @ 5V
– Full load – 277.10mA @ 5V
– Deep sleep – 19.85mA @ 5V
– Dimensions – 64.0 x 24.0 x 20.2 mm
– Weight – 28.2 grams
– Temperature Range – 0°C to 40°C
The Unit PoE-P4 PoE development board can be programmed using the ESP-IDF framework, the Arduino IDE, and M5Stack’s UIFlow 1 and UIFlow 2. More ESP32-P4 boards with PoE support include the Waveshare ESP32-P4-WIFI6-POE-ETH, Olimex ESP32-P4-PC, and Waveshare ESP32-P4-ETH.
The M5Stack Unit PoE-P4 is priced at $21.50 on the company’s official store and will soon be available on AliExpress.
