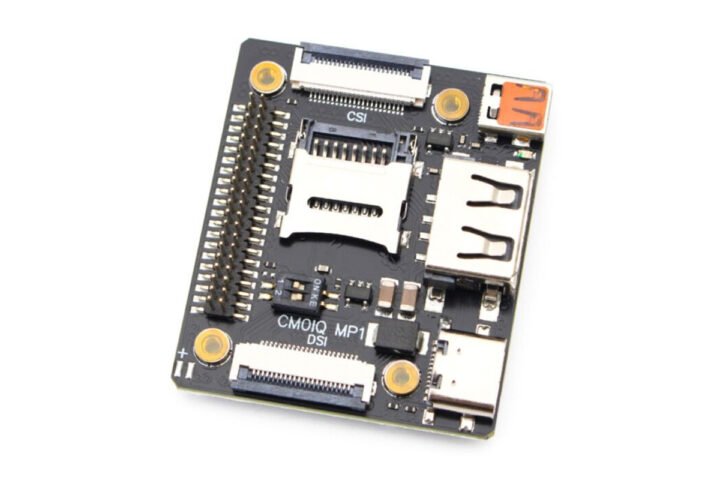

The CM0IQ is a highly compact board utilizing the Raspberry Pi CM0 Lite Compute Module. Measuring just 42 × 36 mm, it integrates various interfaces within a 15.1 cm² area, making it ideal for applications with limited space like robotics, IoT devices, and bespoke hardware solutions.
Though smaller than the Raspberry Pi Zero 2 W (19.5 cm²), the CM0IQ features a full-sized USB-A port, a Micro HDMI port, and 4-lane MIPI CSI and DSI connectors. The designer achieved this compactness by using a 1.27 mm 40-pin GPIO header instead of the typical 2.54 mm version. Additional features include USB Type-C for power, a microSD card slot for storage, 5V solder pads for power input, and four M2 mounting threads.
Raspberry Pi CM0IQ Specifications:
- SoM – Raspberry Pi CM0 Lite
- SoC – Broadcom BCM2710A1
- CPU – Quad-core Cortex-A53 processor @ 1.0 GHz
- GPU – VideoCore IV GPU supporting OpenGL ES 1.1, 2.0 graphics
- VPU – H.264/MPEG-4 1080p30 video decoding, H.264 1080p30 video encoding
- System Memory – 512MB LPDDR2 RAM
- Storage – 0GB (Raspberry Pi CM0 Lite)
- Wireless – 802.11 b/g/n WiFi 4, Bluetooth 4.2 LE (same module as on Pi Zero 2 W) with IPEX antenna connector
- SoC – Broadcom BCM2710A1
- Storage – MicroSD card slot
- Display Interfaces
- Micro HDMI video output
- 4-lane MIPI DSI connector
- Camera Interface – 4-lane MIPI CSI connector
- Networking – Wi-Fi and Bluetooth on SoM (onboard IPEX antenna connector)
- USB
- USB Type-C port (power and USB gadget mode)
- USB-A host port
- Expansion – 40-pin GPIO header (Raspberry Pi compatible, 1.27 mm pitch)
- Misc – DIP switch for boot mode and USB routing
- Switch 1 – Toggles normal operation vs. pulling nRPI_BOOT low
- Switch 2 – Routes USB data to either the USB-C port or the USB-A port.
- Power input – 5V via USB
