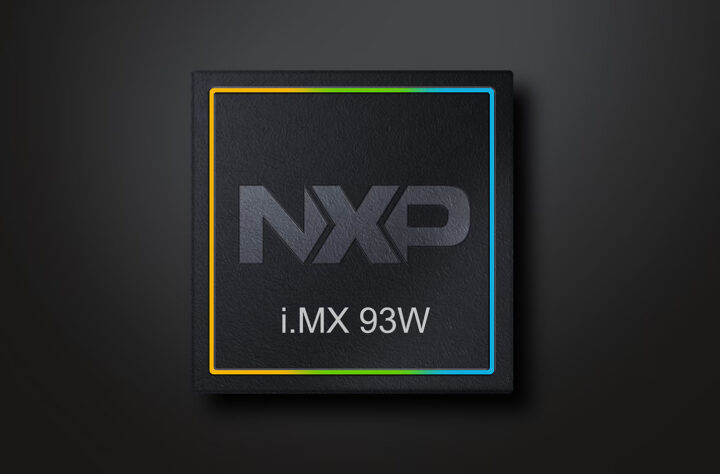

The NXP i.MX 93W is NXP’s first integrated wireless MPU System-in-Package (SiP), featuring a dual-core Cortex-A55 processor alongside an iW610 WiFi 6, Bluetooth LE, and 802.15.4 tri-radio on a single chip.
This 14.2 x 12 mm package includes all necessary external radio components for wireless connectivity, replacing up to 60 discrete components on the PCB. NXP claims this reduces the PCB area, simplifies design and regulatory approval, and speeds up time-to-market.
The NXP i.MX 93W specifications include:
- CPU
- Dual-Core Arm Cortex-A55 at up to 1.7 GHz
- Arm Cortex-M33 core at 250 MHz for real-time control
- GPU – 2D graphics accelerator
- AI accelerator – Arm Ethos-U65 microNPU
- Memory I/F – Up to 3.7GT/s 16-bit LPDDR4/LPDDR4X with inline ECC
- Storage I/F – 2x SD 3.0/SDIO 3.0/eMMC 5.1
- Display Interfaces
- MIPI DSI up to 1080p60
- LVDS up to 720p60
- 24-bit parallel RGB
- Camera Interface – 2-lane MIPI CSI up to 1080p60
- Audio
- 7x I2S/TDM 32-bit @ 768KHz, SPDIF Tx/Rx
- 8-channel PDM microphone input
- Medium Quality Sound output (sigma-delta modulator)
- Networking
- 2x Gigabit Ethernet with AVB and TSN; 1x with energy-efficient Ethernet
- Wireless via integrated IW610G tri-radio
- WiFi 6
- 1×1 dual band 2.4 GHz/5 GHz 802.11 a/b/g/n/ax
- 256 QAM, 20 MHz bandwidth, peak throughput: 114.7 Mbps
- Tx power up to +21 dBm
- Wi-Fi 6 ER, DCM, TWT
- Low-power Wi-Fi modes
- WPA2 / WPA3 Enterprise security
- Matter over Wi-Fi support
- Single, dual antenna with diversity
- Bluetooth LE Connectivity
- High-speed 2 Mbps, long range
- Integrated PA, LNA; Switch with up to +15 dBm TX output
- Switchable Bluetooth LE/802.15.4 operation
- UART or USB interface
- 802.15.4
- IEEE 802.15.4-2015 compliant MAC
- Zigbee and Matter over Thread
- SPI Host Interface
- WiFi 6
- USB – 2x USB 2.0 interfaces with PHY
- Other peripheral interfaces
- 7x UART, 8x I2C, 7x SPI, 2x I3C
- 1x CAN FD
- 4-ch, 12-bit ADC
- 2x 32-pin FlexIO interfaces
- Security – EdgeLock secure enclave
- Dimensions – 14.2 x 12 mm package (FCCSP), 0.5 mm pitch, with an antenna pin
- Temperature Range – -40°C to 105°C
NXP mentions support for Linux OS and FreeRTOS, with Linux likely running on the Cortex-A55 cores and FreeRTOS on the Cortex-M33 core. As the i.MX 93W combines an NXP i.MX 93 with an iW610 and passive components, the software support should align with that of two-chip designs. Target applications include smart home hubs, medical sensors, and energy grid devices.
Wireless connectivity integration is rare in application processors, with similar examples like the Allwinner V821 and the Qualcomm Snapdragon 410E. NXP introduced the i
