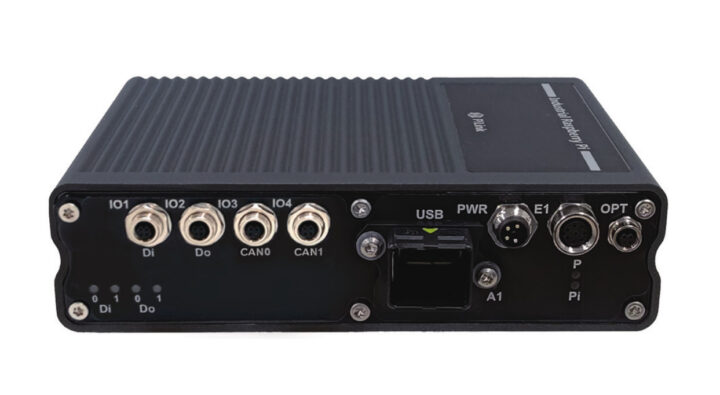

The PL-R5 and PL-R5M Series by Japan-based PiLink are compact industrial PCs utilizing the Raspberry Pi Compute Module 5 (CM5), available with IP20 or IP65 ingress protection ratings.
The PL-R5 Series features a USB 3.0 port, a Gigabit Ethernet port, and a 9V to 40V DC input. In contrast, the PL-R5M Series includes a USB 2.0 port, a 100 Mbps Ethernet port, an optional additional Gigabit Ethernet port, and a 10.7V to 28.8V DC input range. Both models offer optional WiFi 5 and Bluetooth, an M.2 B-Key socket for cellular connections, and optional RS-232, RS-485, I2C interfaces. The IP65 models come in Basic, Basic Plus (featuring 4x analog inputs, 4x DI/DO), and USB (3x USB ports) configurations. Additionally, the PL-R5 has a DIO CAN IP65 variant with two DI, two DO, and two CAN Bus interfaces. The IP20 variants offer even more options.
PiLink PL-R5/R5M (IP65) specifications:
- System-on-Module: Raspberry Pi CM5 with Broadcom BCM2712 SoC
- CPU: Quad-core 64-bit Arm Cortex-A76 processor at 2.4GHz
- GPU: VideoCore V3D VII GPU at 800 MHz
- Memory: Up to 8GB LPDDR4-4267 SDRAM with ECC
- Storage: Up to 64GB eMMC flash with a MicroSD card slot
- Wireless: 2.4 GHz/5.0 GHz IEEE 802.11 b/g/n/ac WiFi 5 and Bluetooth 5.0 LE
- Camera: Internal MIPI CSI connector
- Networking:
- PL-R5: Gigabit Ethernet M8 port
- PL-R5M Basic and USB: 100 Mbps Ethernet M8 port
- PL-R5M Basic Plus: 100 Mbps Ethernet M8 port and Gigabit Ethernet M8 port
- Optional 4G LTE via M.2 B-Key slot and NanoSIM card slot
- USB:
- PL-R5: 1x USB 3.0 Type-A port
- PL-R5M: 1x USB 2.0 Type-A port
- USB Type-C port for eMMC flashing
- USB variant: 2x extra USB 2.0 ports
- Expansion:
- BASIC Plus variant: M5 IO ports with 2x DI, 2x DO, 4x analog inputs
- DIO CAN variant: M5 IO ports with 2x DI, 2x DO, 2x CAN bus
- OPT M5 4-pin connector for I2C, RS-232, or RS-485
- Internal 40-pin GPIO header
- Miscellaneous:
- Fan control
- External battery input
- Backup battery for RTC
- Built-in hardware watchdog
- eMMC write switch
- Mounting options: DIN rail, wall mounting
- Power Supply: PL-R5: 9V – 40V DC input, PL-R5M: 10.7V to 28.8V DC input
- Dimensions: 132 x 88.7 x 35mm
- Weight: About 540 grams
- Temperature Range: Operating: -20…+60
