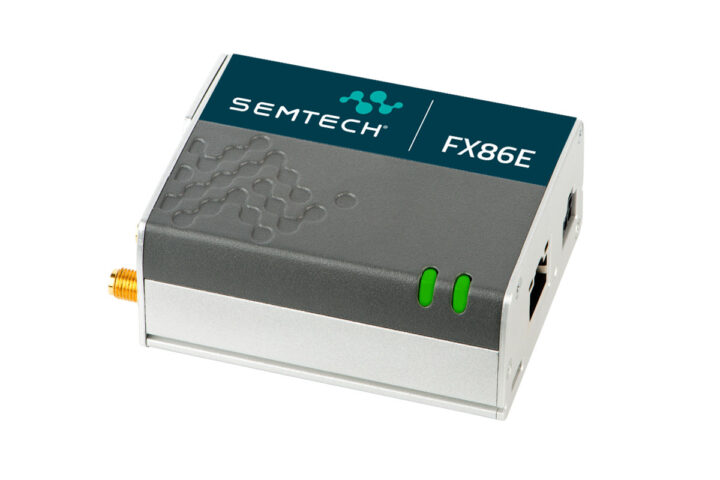

The Semtech FX86E is a modem supporting 5G RedCap and 4G LTE, tailored for industrial IoT use, including robust, long-range security cameras, heavy-duty vehicles, and solar or battery-dependent applications.
Powered by the EM8695 M.2 module, utilizing a Snapdragon X35 5G RedCap modem, this modem is pre-certified and compatible with both public and private networks. It features a military-grade MIL-STD-810H design, IP30 protection, E-Mark certification, and is energy-efficient.
Semtech FX86E specifications:
- SoC/Memory/Storage – TBD
- Cellular
- Supports 5G RedCap (Sub-6 Ghz) and LTE Cat-4
- Frequency Bands
- 5G RedCap – 5G Sub-6 Ghz (FR1 1CC): n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n70, n71, n77, n78, n79
- 4G LTE – LTE (Cat-4 DL / Cat-3 UL): B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B30, B34, B38, B39, B40, B41, B42, B43, B48, B66, B70, B71, B106
- Nano SIM (4FF) slot
- Antenna – Optional 5G/4G adhesive mount puck antenna
- Approvals – FCC, PTCRB, IC,
